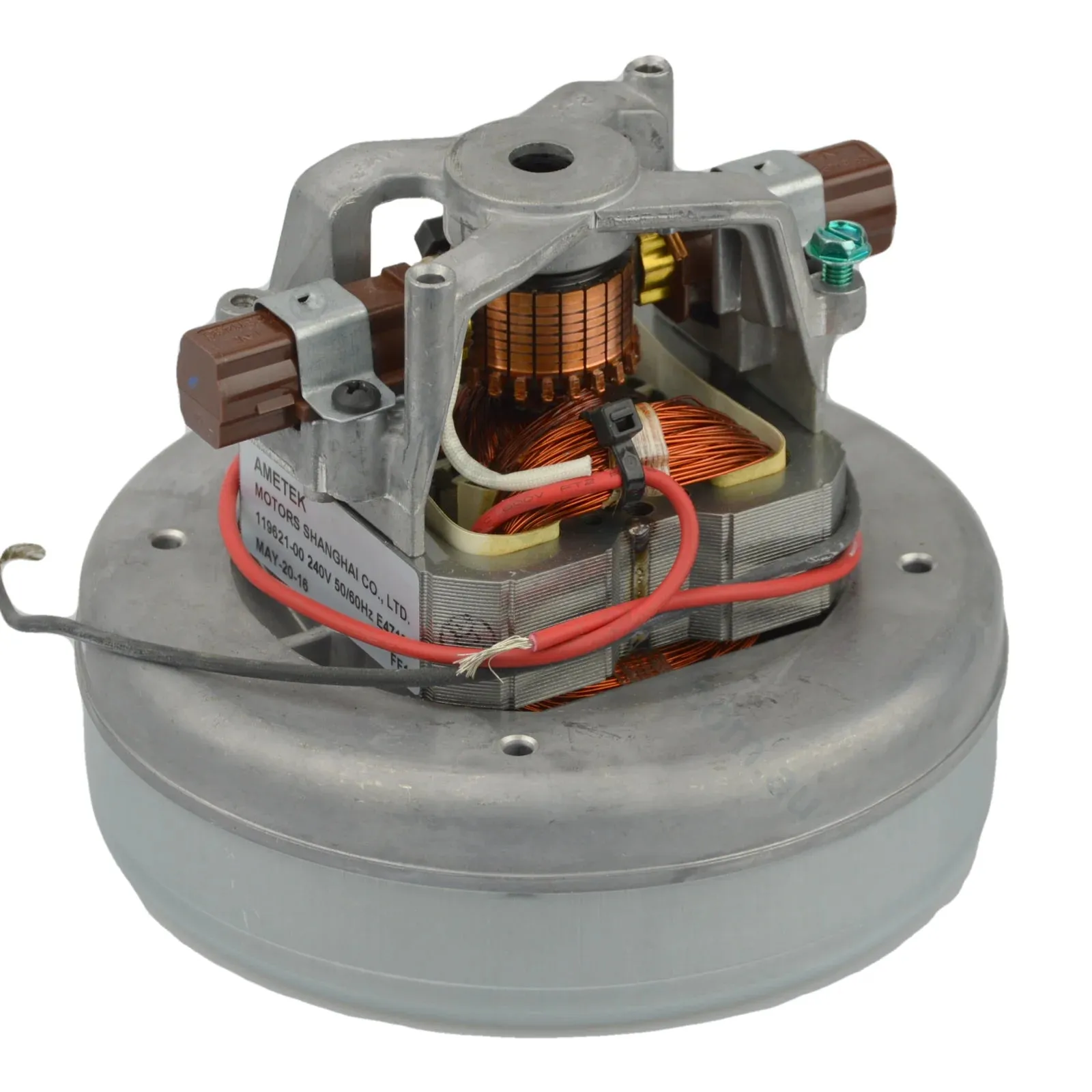

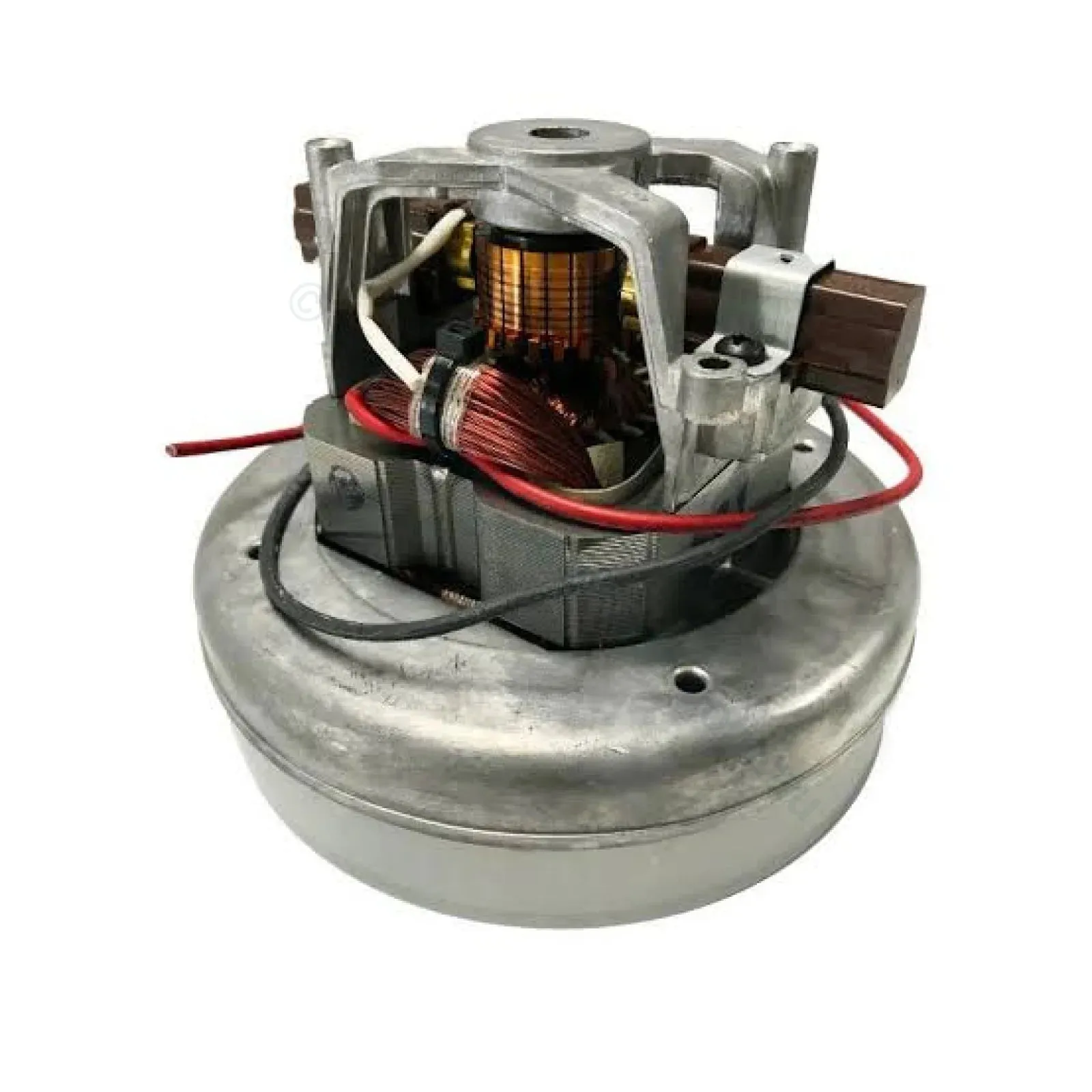

• 850w-1000w
• 50/60Hz,
• 220-240v,
• 3.8A,
• 100 CFM /
• 170 cubic metres/hr open head -
• approx 80-90 cubic metres/hr at 0.6m head
• 145mm diameter fan,
• 45mm overall fan cover height,
• 113mm overall height including motor

Single stage motors offer higher flow at standard pressure - suited to all portable style spa applications.

This motor is the most widely used size in portable spas at 600mm water depth to the injectors.

It suits approx 20 x 6mm holes or 14 x 9mm holes

Amtek
